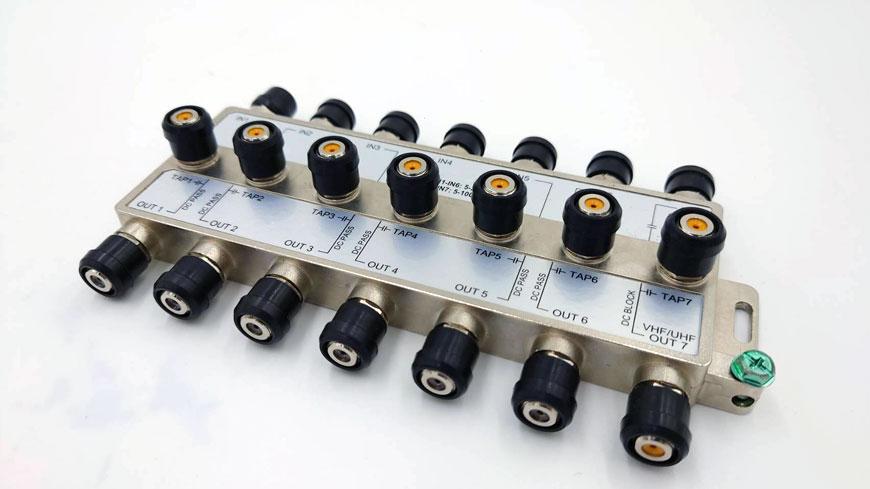

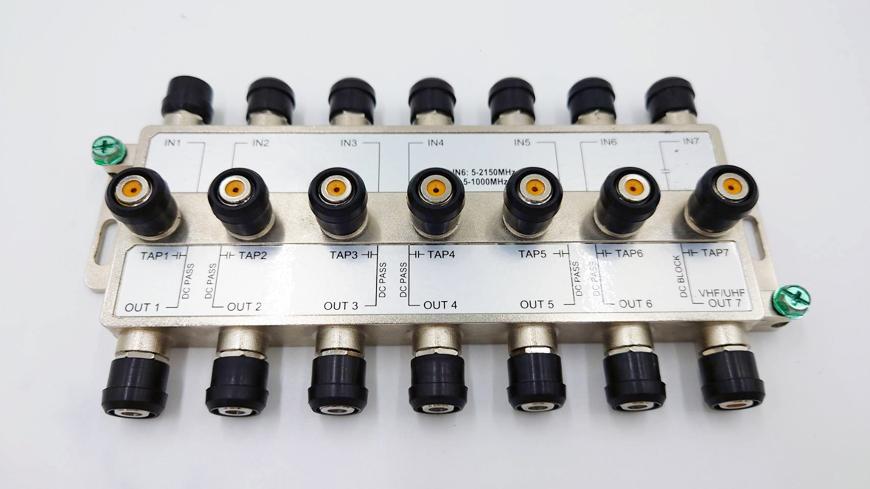

System Impedance 75 ohm Operating IF Frequency Range Satellite ports: 250 – 2150 MHz UHF/VHV port: 5 MHz to 1 GHz Number of Input Ports 7 Total, 6 – satellite ports and 1-UHF/VHF port Number of Output Ports 7 Total, 6 – satellite ports and 1-UHF/VHF port Port to Port Isolation (Input to Output) 35 dB Input Return Loss 12.0 dB, Applies to satellite trunk ports 1 thru 6 only Output Return Loss 12.0 dB, Applies to satellite trunk ports 1 thru 6 only Tap Port Return Loss 10 dB Output Trunk Port to Tap Isolation Loss 20 dB, Applies to satellite trunk ports 1 thru 6 only DC Voltage Loss (output to input port) 1 VDC, Max loss at Max Current DC Power Passing (output to input only) 1000 mA, On Ports 1 thru 6 the DC power only passes from output port to input port (i.e. power flows toward the ODU only) Port 7 (UHF/VHF) is DC Blocked
